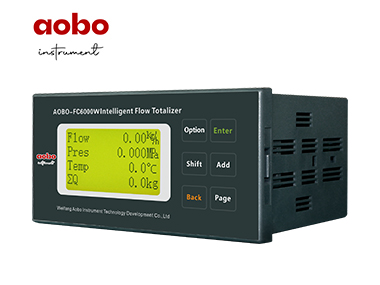

AOBO-FC6000W Flow& Heat Totalizer

Overview

     AOBO-FC6000W intelligent flow heat totalizer is a heat metering instrument, with 12864 graphical point LCD display, Chinese menu setting, 32-bit single chip computer as the core, 24-bit A/D converter to collect analog signal and 12-bit D/A converter to output (4-20) mA signal. The instrument can receive pulse signal or analog current signal output by dual channel flow sensor and transmitter, and receive dual channel pressure and dual channel temperature signal

to form a high precision flow&heat measurement system. The instrument displays parameters such as instantaneous water supply, instantaneous backwater, water supply accumulation, backwater accumulation, instantaneous heat (cold) amount, accumulated heat (cold) amount, water supply pressure, backwater pressure, water supply temperature, backwater temperature, density enthalpy value; the instrument has continuous automatic compensation function. The instrument has parameter programming setting function. Setting parameters and accumulated flow value will continue to be maintained after power failure.

The Modbus communication technology with RS232/485 interface can be networked with various networks or industrial buses to realize remote meter reading.

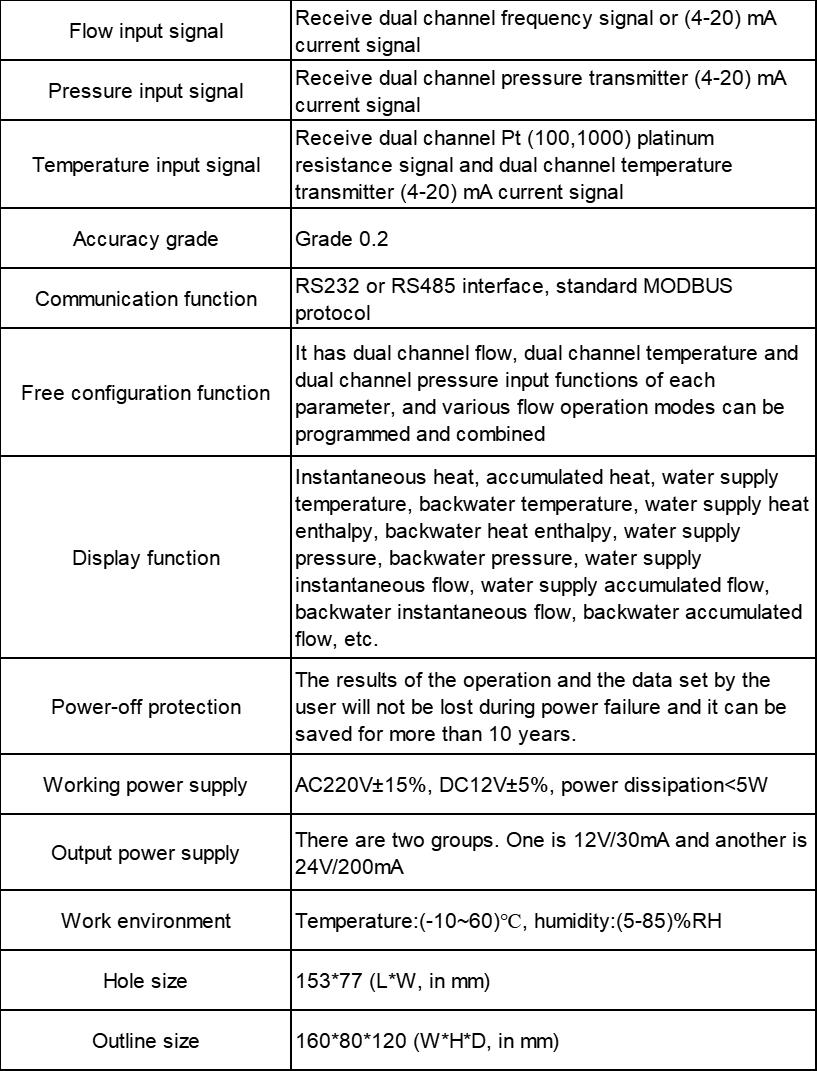

Parameter
