Panel Flowmeter

Create time：2023-01-19 13:36 views

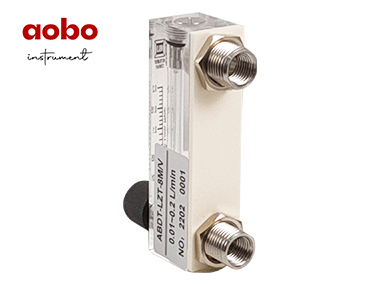

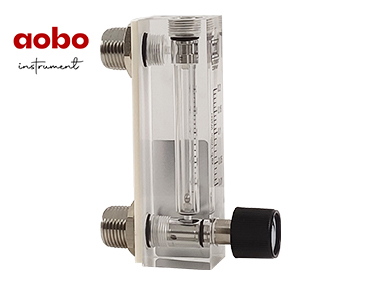

Panel Flowmeter

Material of body is plastic(PMMA) Easy to read design Construction assures accuracy Simple installation Easy cleaning FEATURES 1. Cap 2. O-ring cap 3. Float stop top 4. Guide wire 5. Float 6. float stop bottom 7. Body 8. O-ring adapte

Structure and size

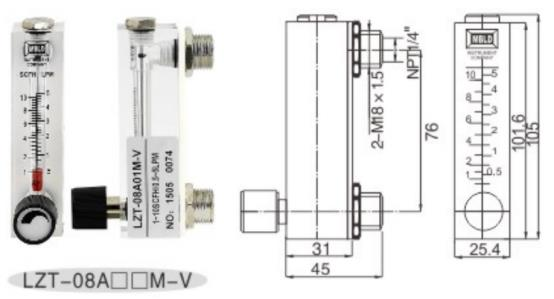

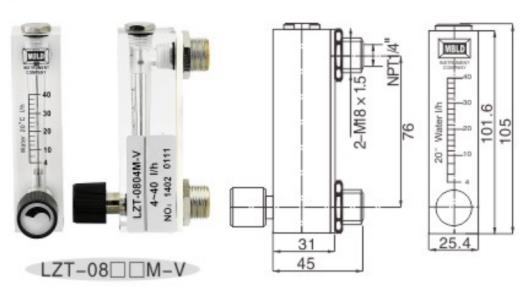

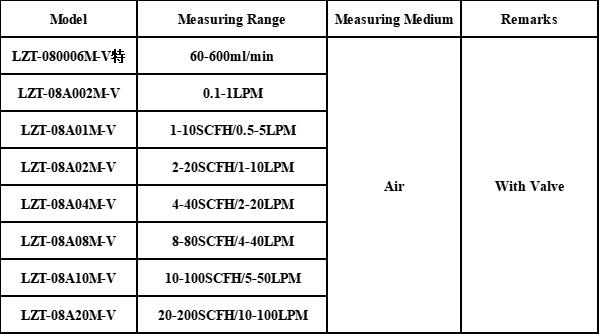

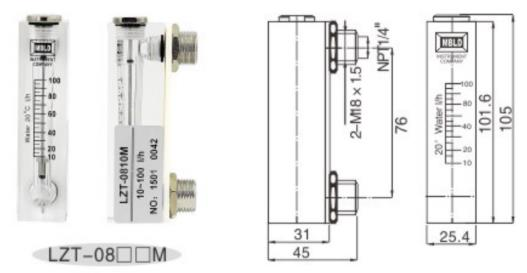

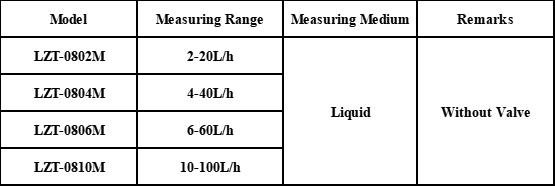

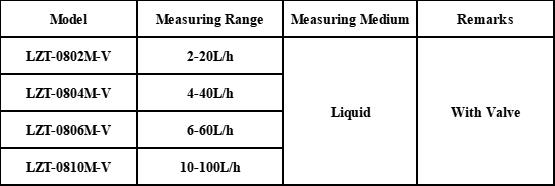

LZT-8 series panel type overall dimension drawing and table

Units(mm)

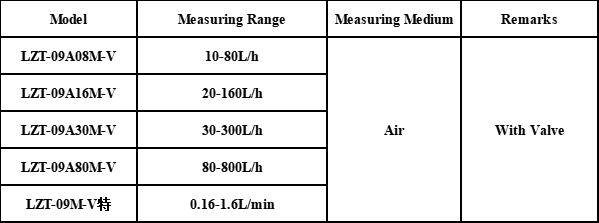

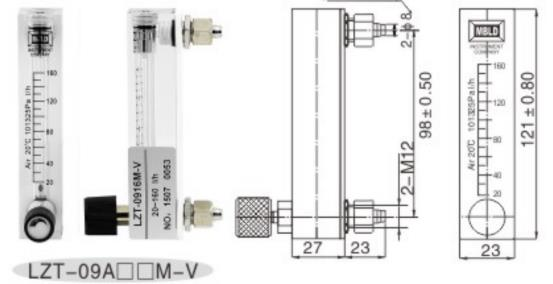

LZT-9 series panel type overall dimension drawing and table

Units(mm)

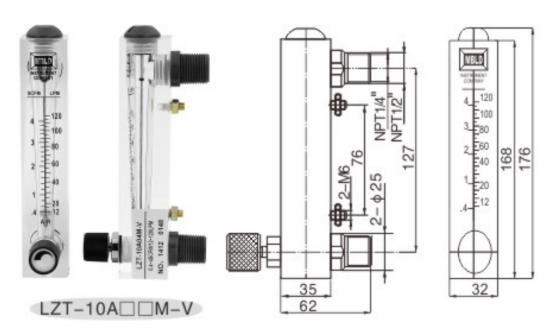

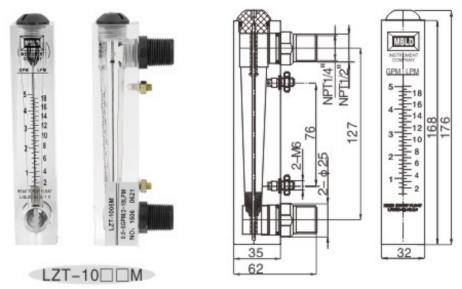

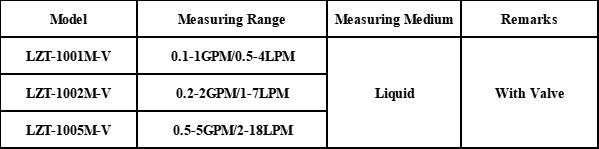

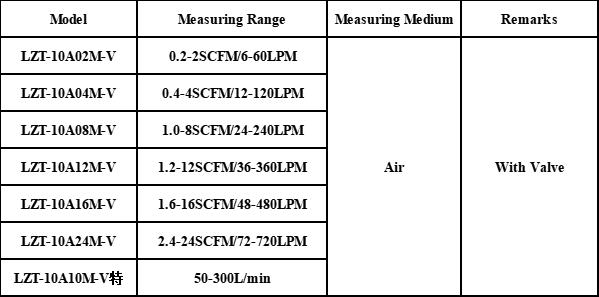

LZT-10 series panel type overall dimension drawing and table

Units(mm)

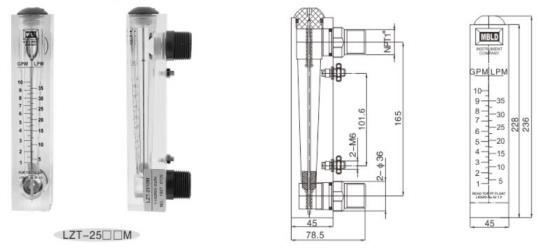

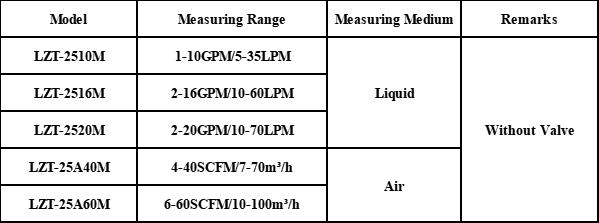

LZT-25 series panel type overall dimension drawing and table

Units(mm)

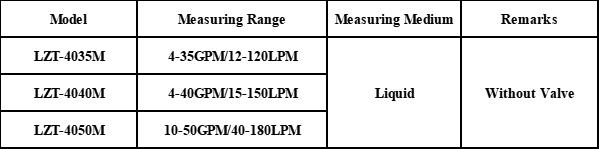

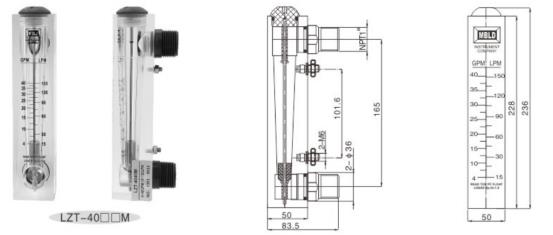

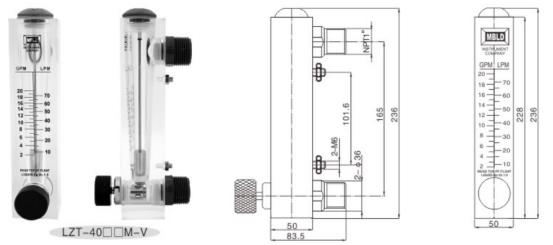

LZT-40 series panel type overall dimension drawing and table

Units(mm)
