velocity meter

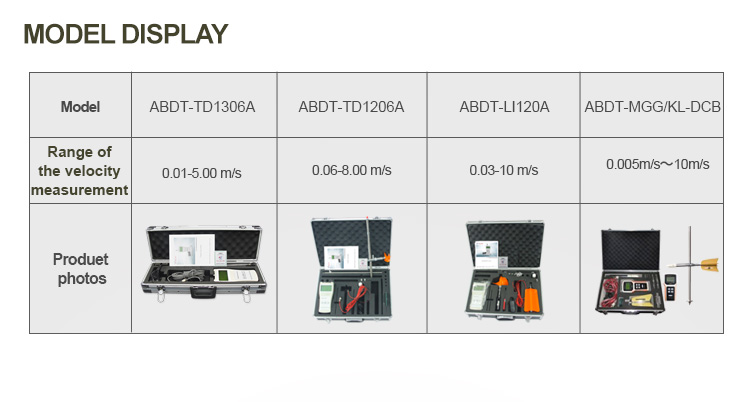

Overview

ABDT-1306A portable velocity meter is developed for the specific measurement of the flow rate for the hydrometric station, factories and mines, environment-protection monitoring station, irrigation and drainage on the farmland and hydrogeology survey, etc.

The device is simple and convenient, energy saving, stable and reliable.  It  pos  sesses complete functions and a high automaticity in  accordance  with  the  nat  ional measurement standard of open  channel.  Equipped  with  a  rotating  propel  ler which can endure 80 ℃，it is a new portable velocity meter in China.

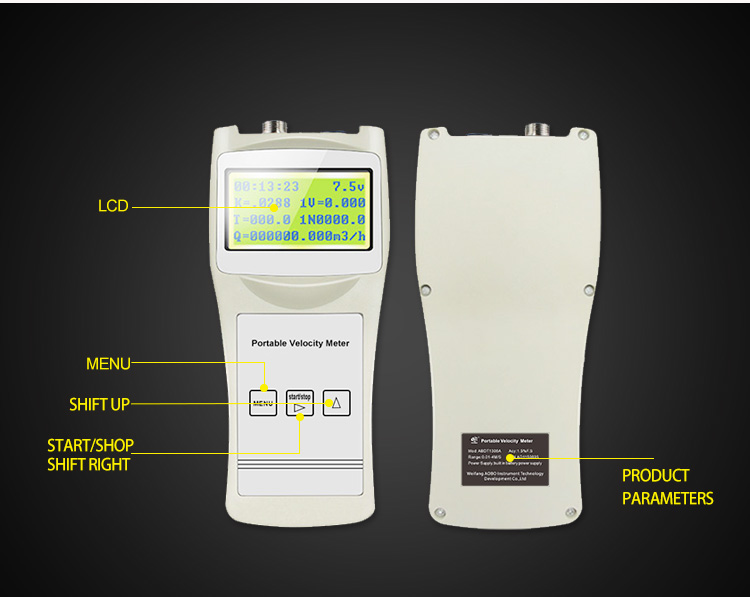

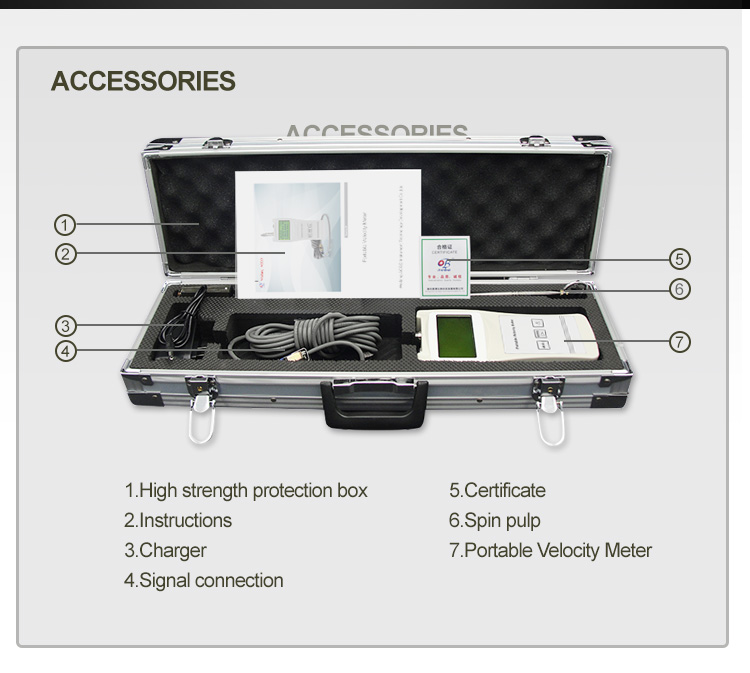

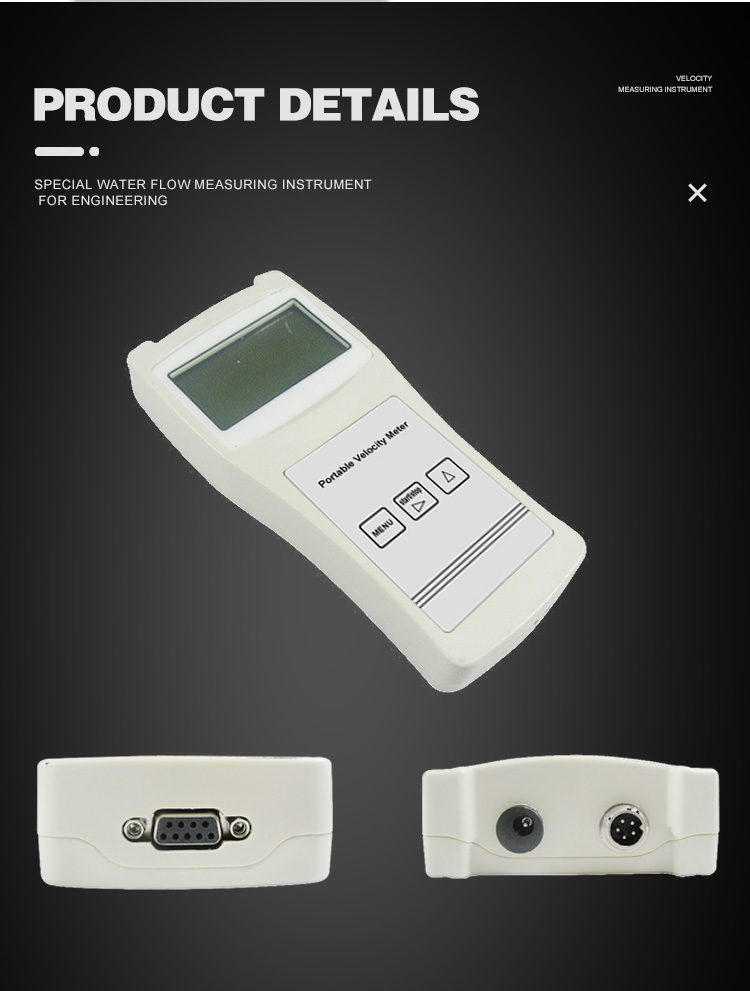

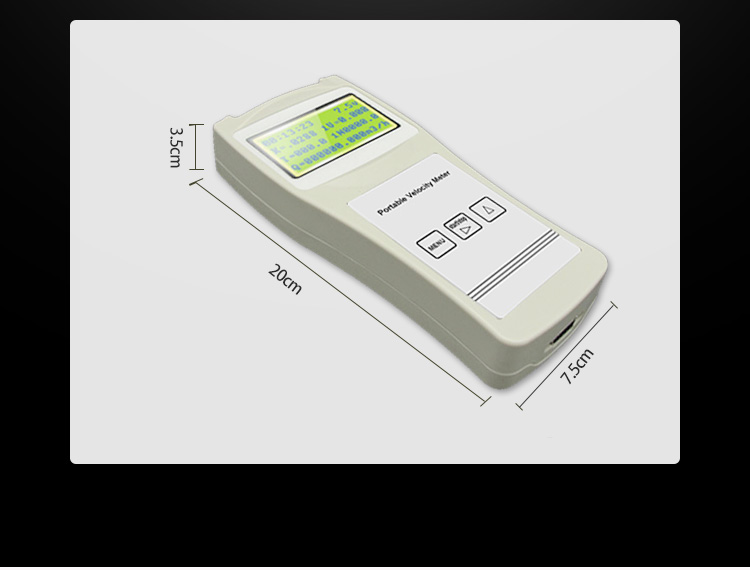

Feature

Measurement mode： Dip stick location measurement

Temperature range：－20℃- 60℃

Power supply: DC8.4V Li-ion rechargeable battery, continuous operation of above 40 hours after complete charge.

Measurement Principal

The device was developed with the flow velocity-area method in the open channel measurement. After obtaining the flow velocity, the flow quantity can be obtained through the formula Q=V·S(S is the section area)

1. The measurement of the flow velocity

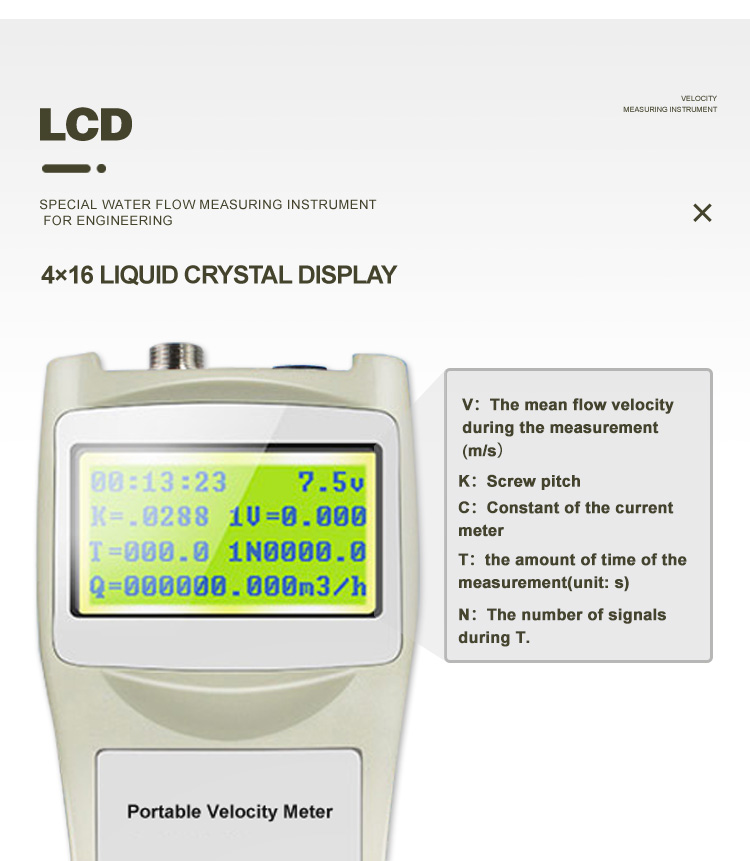

In the measurement, the rotor current meter was rotated by the water power, the signal device generates the revolution signal, and the flow velocity can be calculated by the following formula:

In it ：

V：The mean flow velocity during the measurement（m/s）

K：Screw pitch

C：Constant of the current meter

T：the amount of time of the measurement（unit: s）

N：The number of signals during T

During the use of the device, K and C both are constants. The flow velocity can be calculated once the value of T and N are obtained.

2. The calculation of volume of flow

By the flow velocity-area method, the volume of flow can be obtained by multiplying the flow velocity and section area which were obtained in the measurement.
