Introduce

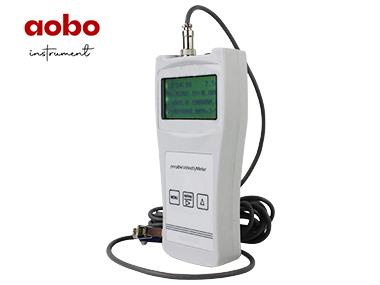

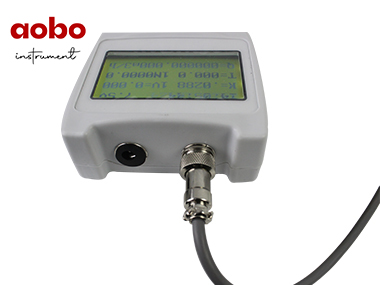

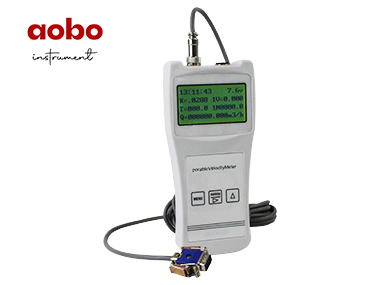

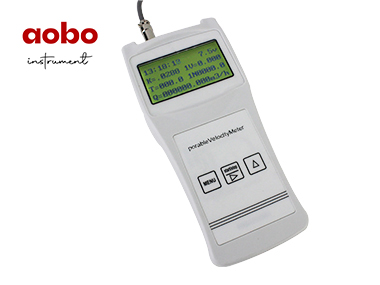

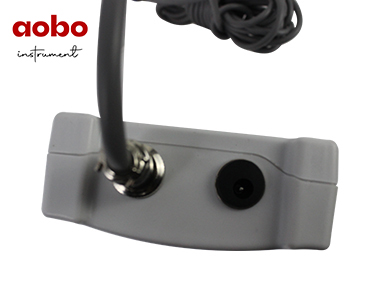

ABDT-1306A portable velocity meter is developed for the specific measurement of the flow rate for the hydrometric station, factories and mines, environment-protection monitoring station, irrigation and drainage on the farmland and hydrogeology survey, etc.
ABDT-1306A intelligent velocity meter can be equipped with the new sensor of the flow rate rotating propeller. The sensor is developed by the advanced technology at the end of 2004. The helical angle, thread pitch, craftsmanship and materials are all been redesigned., the initial velocity ≤ 1cm/s. Indicators like initial velocity, measurement range, linearity, concentricity, the Calibration coefficients and mean variance are been greatly improved. The measurement range of the flow velocity: 1~400cm/s and that of sampling time: 1~99 seconds.
The device is simple and convenient, energy saving, stable and reliable. It pos sesses complete functions and a high automaticity in accordance with the nat ional measurement standard of open channel. Equipped with a rotating propel ler which can endure 80 ℃，it is a new portable velocity meter in China.
Technical requirement
Velocity measurement formula：
（automatic calculation）
Serial number： 、K 、C
Range of the velocity measurement: 0.01-5.00 m/s
Error in current measurement：≤1.5%
Display screen：4×16 liquid crystal display
Measurement mode： Dip stick location measurement
Temperature range：－20℃- 60℃
Power supply: DC8.4V Li-ion rechargeable battery, continuous operation of above 40 hours after complete charge.
Measurement principal
The device was developed with the flow velocity-area method in the open channel measurement. After obtaining the flow velocity, the flow quantity can be obtained through the formula Q=V·S(S is the section area)
In the measurement, the rotor current meter was rotated by the water power, the signal device generates the revolution signal, and the flow velocity can be calculated by the following formula:
In it ：
V：The mean flow velocity during the measurement（m/s）
K：Screw pitch
C：Constant of the current meter
T：the amount of time of the measurement（unit: s）
N：The number of signals during T
During the use of the device, K and C both are constants. The flow velocity can be calculated once the value of T and N are obtained.
By the flow velocity-area method, the volume of flow can be obtained by multiplying the flow velocity and section area which were obtained in the measurement.
Packing
|
No. |
Product name |
Quantity |
|
1 |
ABDT-1306A current meter |
1 |
|
2 |
ABDT-1306A rotating propeller |
1 |
|
3 |
Signal line |
1 |
|
4 |
*Communication cable (selective) |
1 |
|
5 |
Charger |
1 |
|
6 |
Attachments: ABDT-1306A portable velocity meter user manual |
1 |
Charge the device for above 3 hours at the first time. Set the test time above 20 seconds. Run out the battery before recharging. (The device contains a protector for over-charging and over-discharging)
