■ Applied to Liquid Mass Flow
■ Mass Flow Accuracy
±0.15% / ±0.2%
■ Density Measuring Accuracy ±2kg/m3
■ Normal Diameter
DN5～DN250
■ Process Temperature Ranges -40℃～+350℃

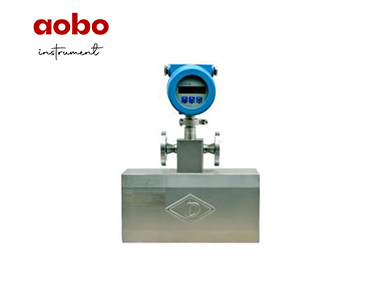

Component Parts of N Series Mass Flow Meter
N Series Mass Flow Meter is defined as N series Mass Flow Meter with flow accuracy is 0.15% or 0.2% whom is made ofN series mass flow Sensor and DPT100 Transmitter.
FeaturesandBenefits
Double U or double C type flow pipe design is better for measuring accuracy
Provides Integrated mass flow, volume flow, density, temperature measurement and the calculates the others relevant parameters
Easy on installation, no need rectifier, filter parts, no special requirements for install ing direct pipe section
Without moving parts and no need frequent maintain; high stable function no need frequent calibration
Allows low range flow running, reducing pressure loss to keep high efficiency
Compact instal lation to save installation costs
Being compatible with P series A( flanges faces interval distance)dimension
The connected Transmitter can be exchanged for easy maintain
Not being influenced by ambient temperature
