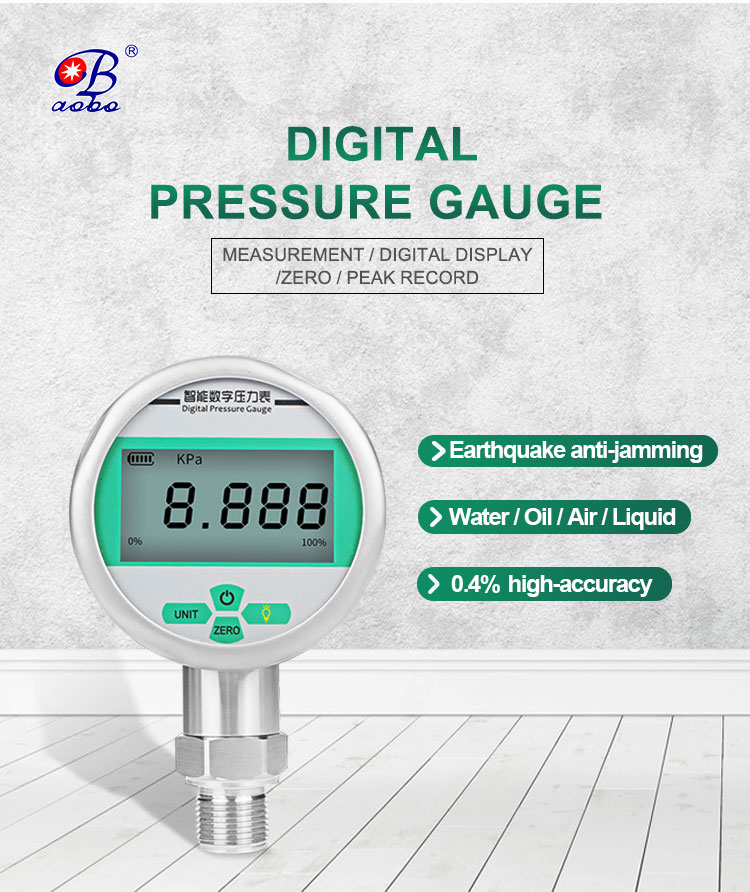

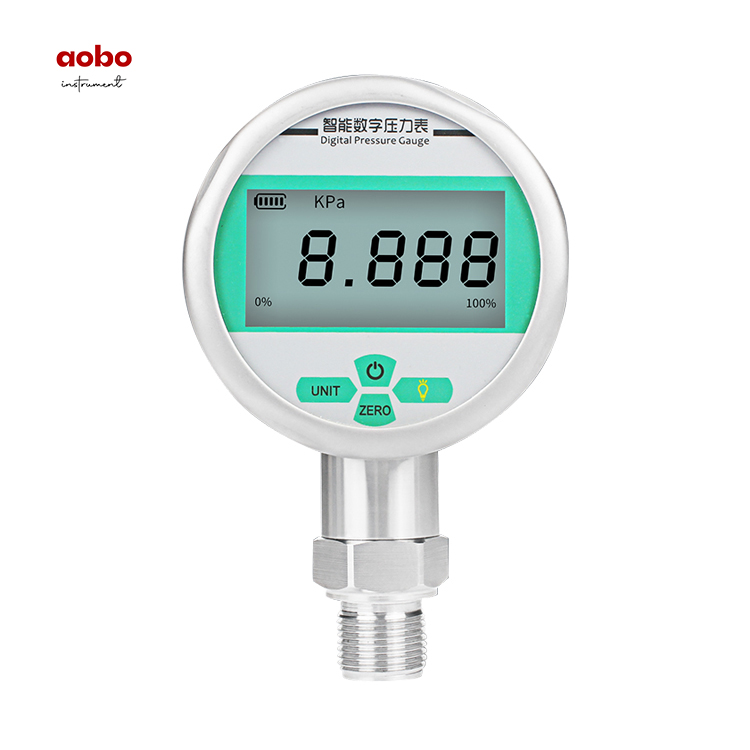

Product Overview
YBY-80C high precision digital pressure gauge with built-in high-precision pressure sensor can accurately display the pressure in real time, and has the characteristics of high precision and good long-term stability.
This product is equipped with LCD screen, which has many functions such as zero clearing, backlight, on-off, unit switching and low-voltage alarm. It has the advantages of simple operation and convenient installation.

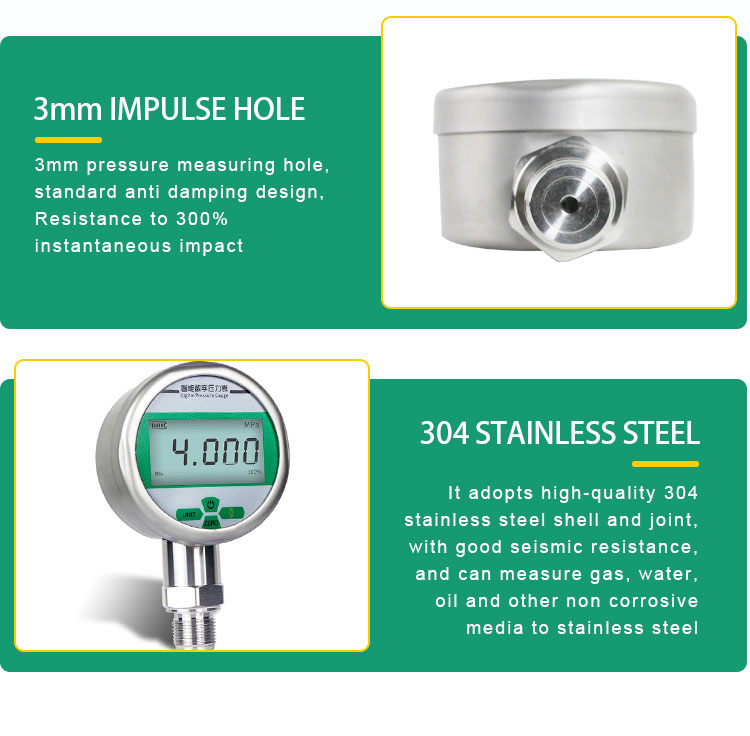

This product adopts high-quality 304 stainless steel shell and joint, with good seismic resistance, and can measure gas, water, oil and other non corrosive media to stainless steel.
This product is suitable for portable pressure measurement, equipment matching, calibration equipment and other pressure measurement applications.

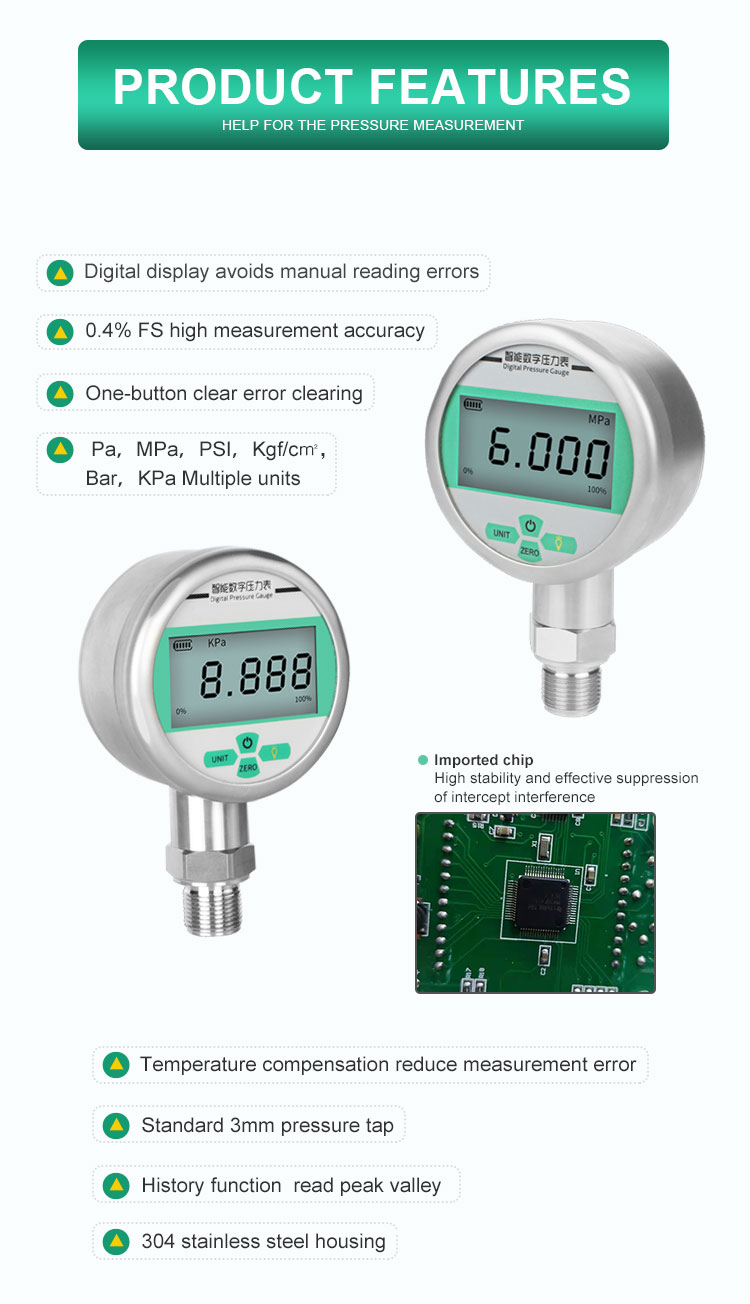

Product Characteristics
(1) one click Reset, easy to use;
(2) high quality 304 stainless steel shell and joint, earthquake resistant and durable.
(3) multiple measurement units, one key switching, easier to use.
(4)with temperature compensation, small temperature coefficient and more accurate measurement.
(5) 1.1 times the maximum range overload display, with peak recording function and more reliable use.
(6) four digit half segment display, accurate and intuitive reading.
(7) graphical display of battery power and bar graph display of pressure value percentage table.
(8) white backlight for easy viewing at night.
(9) this product is powered by two No. 7 (AAA) batteries.

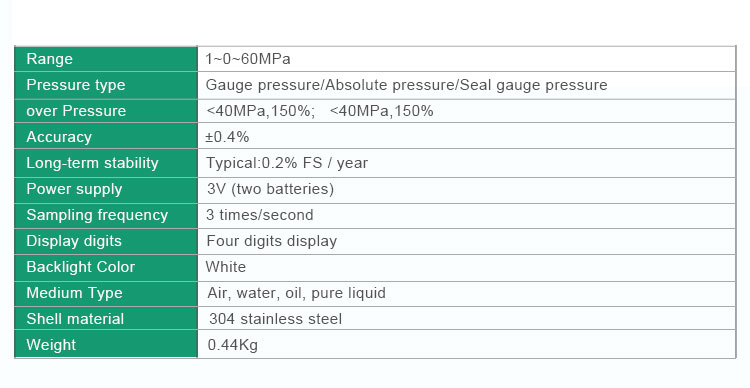

Performance Parameter(s)
|
Range |
-0.1~0~ 60MPa |
|
Pressure type |
Gauge pressure, absolute pressure, seal gauge pressure |
|
Overload |
< 40MPa，150%; ≥40MPa， 120% |
|
Precision |
±0.4% |
|
Long term stability |
0.2%FS/Y |
|

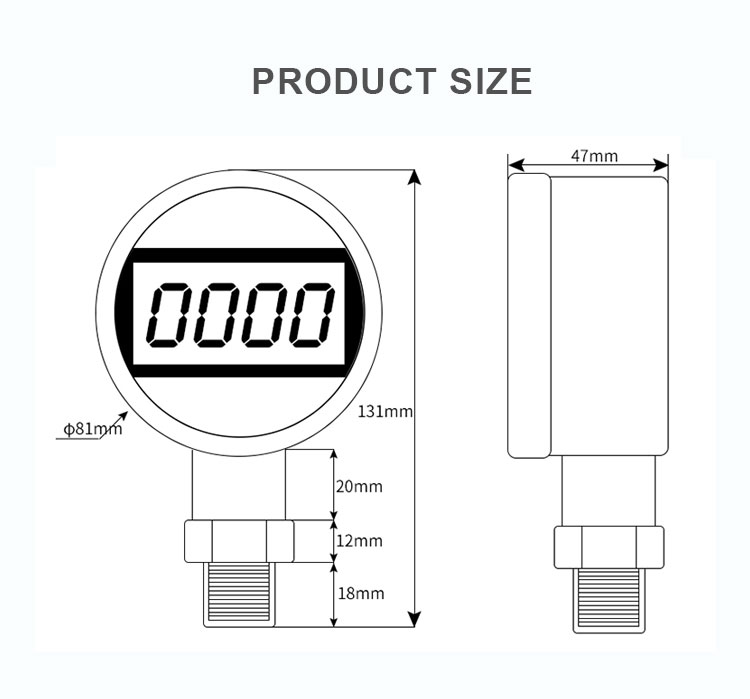

Overall dimension |
diameter 81mm*height 131mm*thickness 47mm |
|
weight |
About 440g |
|
Power supply |
3V(2 AAA batteries) |
|
Battery life |
≥ 6 months (subject to specific working conditions) |
|
sampling frequency |
3 times / second |
|
display screen |
Four digit half segment liquid crystal display |
|
Backlight color |
White |
|
Measuring medium |
Air, water and oil have no corrosive medium to stainless steel |
|
Peak recording |
Yes |
|
Case Material |
304 stainless steel |
|
Interface material |
304 stainless steel |

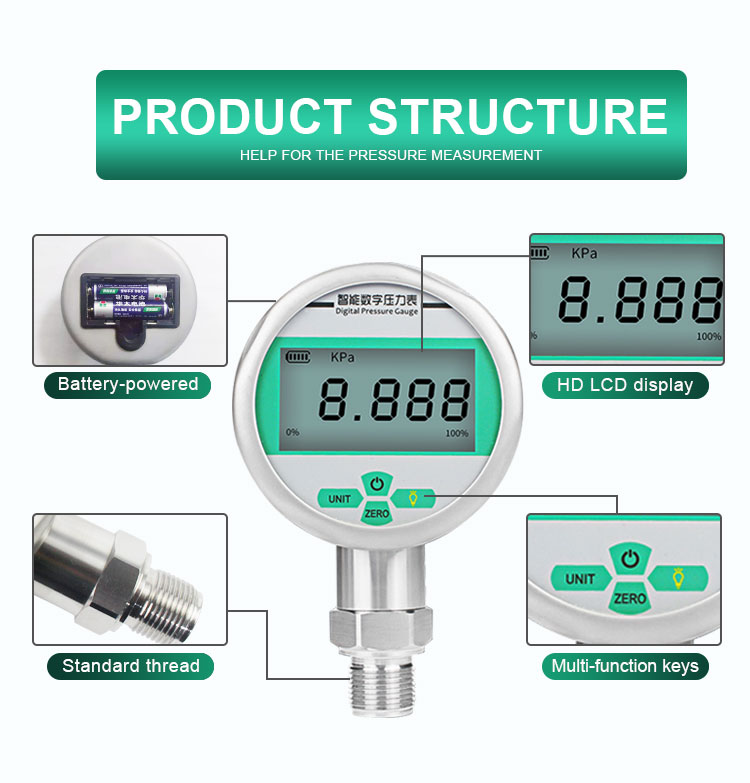

Display and key
|
Power key |
On / off |
|
Unit key |
Short press to switch units |
|
Reset key |
Press and hold for 3 seconds to calibrate the zero error |
|
Backlight key |
Short press to turn the backlight on / off |
|
Symbol |
meaning |
|
Pa、kPa、psi、kgf/cm²、bar、MPa |
Pressure unit |
|
MAX |
Maximum pressure |
|
MIN |
Minimum pressure |
|
|
battery level |
|
Other identification |
system parameter |

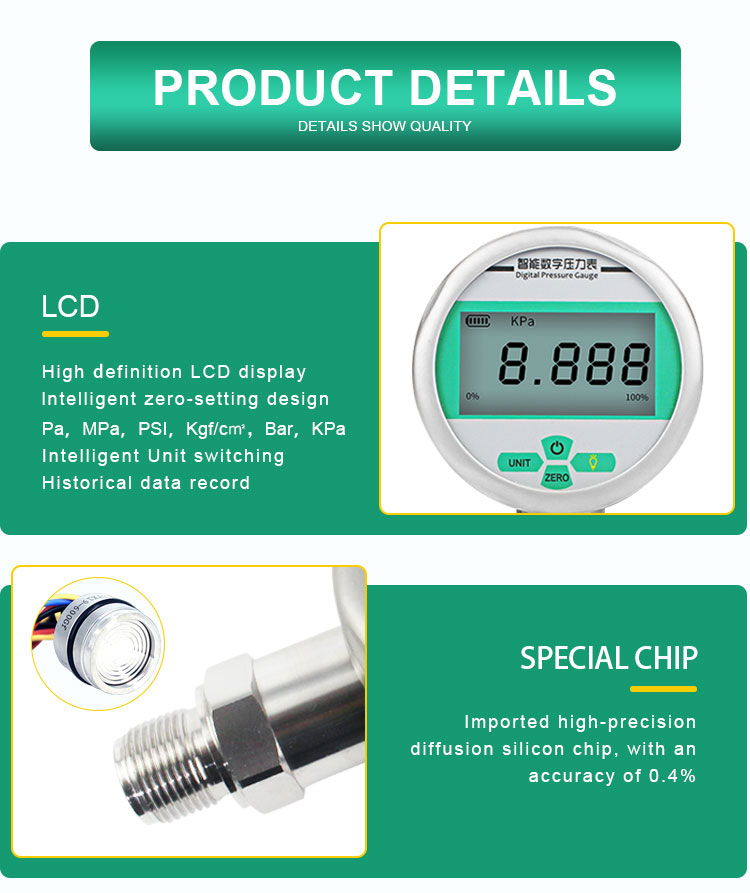

Product Details
