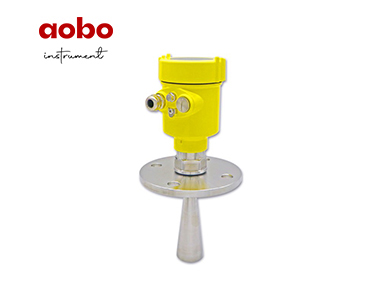

Radar Level Meter-RD12

Create time:2023-06-03 09:38 views
Radar Level Meter-RD12

Product Introduction Application: Liquid Measuring Range: 30 meters Process Connection: Thread Flange Medium Temperature : 40℃150 Process Pressure: -0.1-4.0 MPa Accuracy : 3mm Protection Grade: IP67 Frequency Range: 26GHz Signal Output:


Product Introduction

Application:  Liquid
Measuring Range:  30 meters
Process Connection:  Thread, Flange
Medium Temperature : 40℃150
Process Pressure:  -0.1-4.0 MPa
Accuracy : ±3mm
Protection Grade:  IP67
Frequency Range:  26GHz
Signal Output:  4... 20mA/ HART (Two-wire/Four)
RS485/ Modbus
Explosion-proof Grade:  Exd T4 Gb


The characteristics of 26G radar level meter:

Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
Almost no corrosion, bubble effect almost not affected by water vapor in the  atmosphere, the temperature and pressure changes.
Serious dust environment on the high level meter work has little effect.
A shorter wavelength, the reflection of solid surface inclination is better.
Beam angle is small, the energy is concentrated, can enhance the ability of echo  and to avoid interference.
The measuring range is smaller, for measurement will yield good results.
High signal-to-noise ratio, the level fluctuation state can obtain better
High frequency, measurement of solid and low dielectric constant of the best  choice.
