Intelligent multi variable liquid level gauge

Create time：2023-06-03 09:34 views

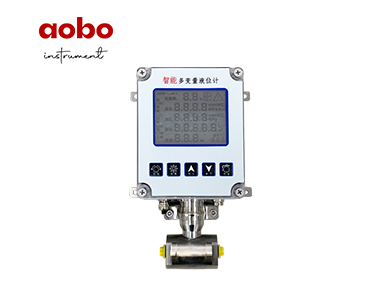

Intelligent multi variable liquid level gauge

Product overview ABDT-MP-Iintelligent multivariable liquid level gauge is a multi-functional digital intelligent instrument which uses advanced and stable monocrystalline silicon technology and unique integrated process technology to reali

Product overview

ABDT-MP-I intelligent multivariable liquid level gauge is a multi-functional digital intelligent instrument, which uses advanced and stable monocrystalline silicon technology and unique integrated process technology to realize the simultaneous monitoring of liquid level, differential pressure and pressure by a single core. It also has environmental temperature monitoring and positioning functions. It can be powered by dry battery, solar energy and external power supply.

2、Performance parameters

Pressure type	Differential pressure, pressure
Differential pressure
Differential pressure range	40KPa, 100KPa, 250KPa (other ranges can be customized)
Accuracy	0.2%FS
Pressure
Pressure measurement range	4MPa (other ranges can be customized)
Accuracy	0.2%FS
Temperature drift	0.5% FS (-20 ～ 70 ℃)
Overload pressure	16MPa
Maximum static pressure	40MPa
Ambient temperature	With LCD meter -30 ℃ ~ 70 ℃
Medium temperature	-40 ℃ ~ 104 ℃
Storage temperature	-40 ℃ ~ 85 ℃
Insulation resistance	≥ 100MΩ /500VDC (200M Ω /250VDC)
Degree of protection	IP65
Explosion-proof grade	Non explosion proof
Long term stability	± 0.2% FS / year
Power supply	Battery, external power supply, solar energy optional
Data transmission frequency	1 time /3 hours (transmission frequency can be adjusted)
Diaphragm material	316 stainless steel
Interface specification	NPT 1/4
Shell material	ADS+PC
Size / weight	140mm170mm95mm/1.5kg (excluding options)
