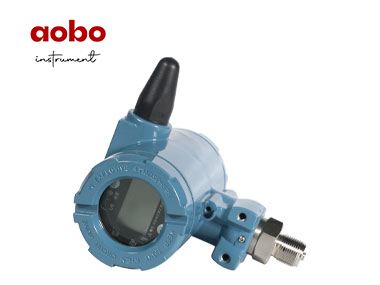

Wireless Remote Pressure Transmitter

Overview

    The integrated pressure transmitter is a supporting product of the wireless monitoring system for fluid pressure monitoring. It is suitable for pressure monitoring of the production, storage and transportation process of oil and water wells, monitoring of tap water pipe network, telemetry of water conservancy and hydropower, pressure detection of gas pipeline, liquid level detection of rivers, lakes and seas, etc. It adopts micro power consumption wireless communication mode, without wiring, the installation is faster, safe and convenient. The standard pressure measurement signal can be conveniently connected to the measurement and control system through wireless Ethernet transmission, which has a wide range of applications. It can directly send data to the specified IP server. Support private servers and public servers. OPC reading data is supported.

Feature

1. Wireless testing of pipeline pressure, which is typically used in oil field wellhead pressure monitoring;

2. Explosion proof design: Flameproof aluminum shell, circuit board system is intrinsically safe;

3. Protection grade: IP66, fully sealed waterproof design;

4. 2G, 3G, 4G and Nb network communication adopts UDP / tcpip protocol transmission.

5. LCD display: - 30 ~ 75 ℃ wide temperature working range, can display pressure data, battery voltage, wireless channel and other information;

6. Adjustable installation direction: connect to the on-site pipeline valve through union or adapter, and the direction can be adjusted;

7. 38Ah high energy lithium sub battery, ultra long service life;

8. High gain antenna, full band antenna system;

9. Customized protective wire sleeve to prevent cable connector from breaking;

10. Support private cloud and supporting cloud platform. Support the specified IP address or website to actively send data.

11. Automatic power consumption control, high power operation when sending data, micro power operation when standby. With active data alarm function.

12. Support querying data on mobile app. Support OPC configuration software to read data.

13. Support server update system (software upgrade) without going to the installation site.

Parameter

1. Measured medium: liquid and gas

2. Pressure range: 0 ~ 60MPa, customizable

3. Product accuracy: grade 0.5

4. Overload pressure: 150% F.S

5. Reporting cycle: 1 minute ~ 12 hours can be set

6. Decimal places: 0 ~ 3 digits, which can be set

7. Signal transmission: 2G, 3G, 4G, Nb network. UDP, tcpip protocol

8. Transmission power: ≤ 750mW

9. Communication distance: determined by the base station

10. Working power supply: 3.6V lithium battery

11. Explosion proof grade: Exib IIC T4 Gb

12. Enclosure protection: IP66

13. Process interface: M20*1.5/NPT1/2 external thread

14. Working ambient temperature: - 40 ~ 75 ℃

15. Working environment humidity: ≤ 97% RH

16. Product weight: 2000g

17. Shell material: aluminum alloy

18. Pressure interface: 316L stainless steel.

Installation

1. Confirm that the measurement range required by the process is consistent with the range of the transmitter to be installed.

2. The joint thread specification of process installation must be matched with the transmitter.

3. To install the pressure transmitter on the pipeline, first close the valve (needle valve or gate valve) on the pipeline ready to install the pressure transmitter, and then there are two installation methods: (1) screw the transmitter directly into the upper port of the valve（ 2) Screw the union or adapter into the upper port of the valve, and then screw the transmitter into the upper port of the union or adapter. This installation method adjusts the direction by adding the union or adapter. After installation, open the needle valve and confirm that there is no leakage, that is, the installation is qualified.
